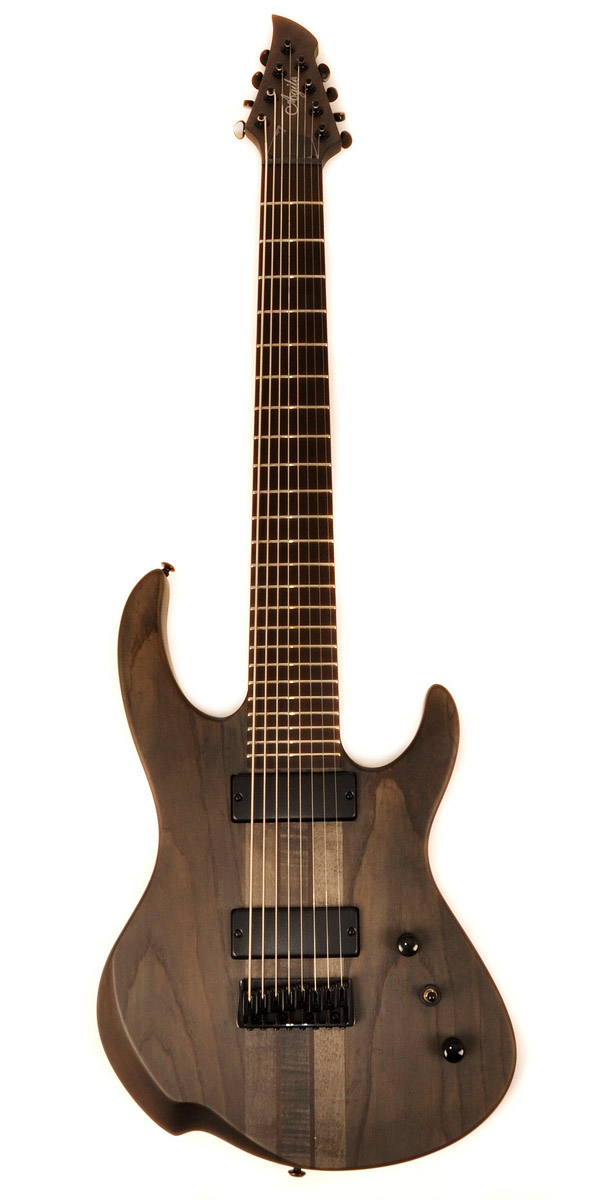

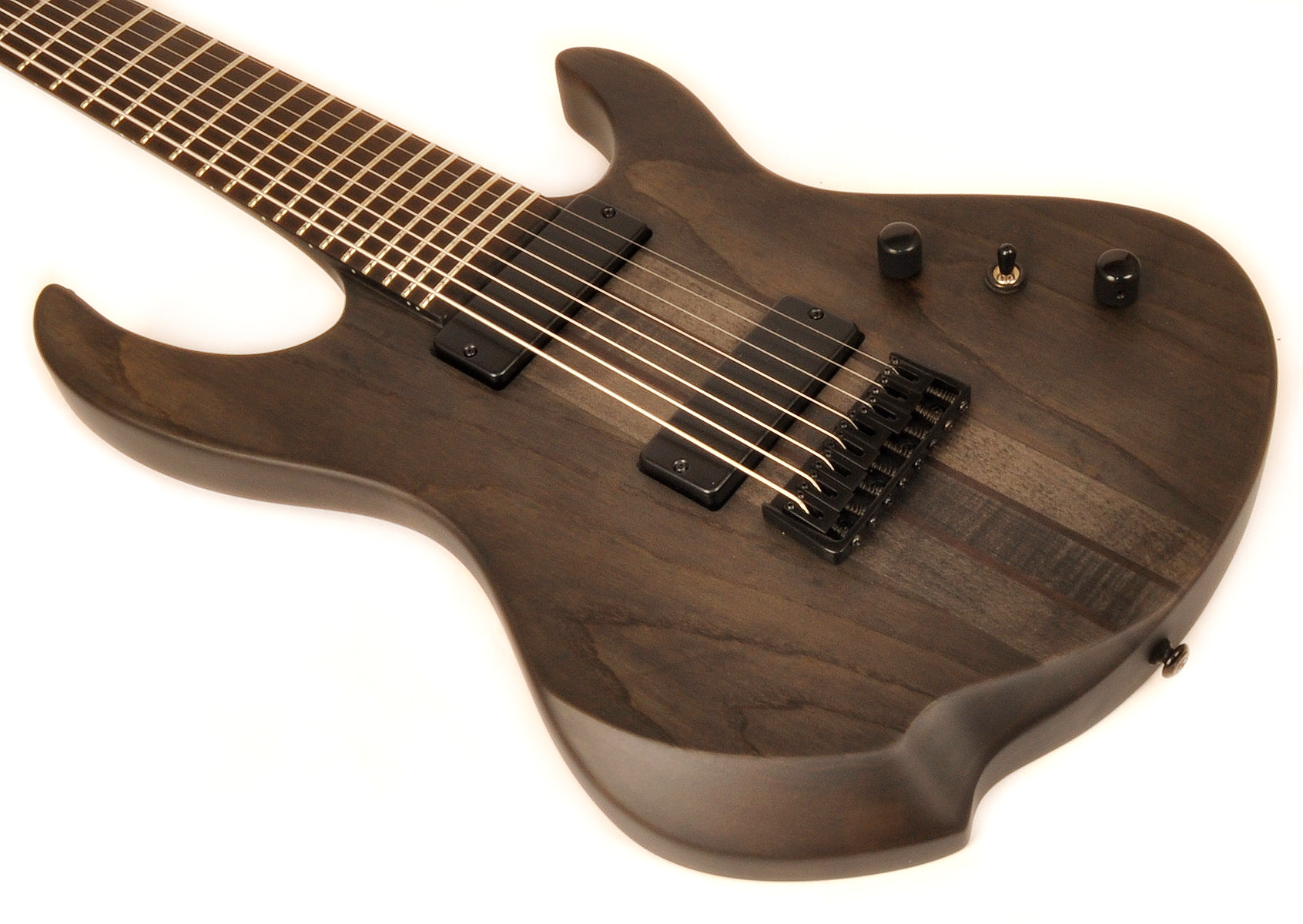

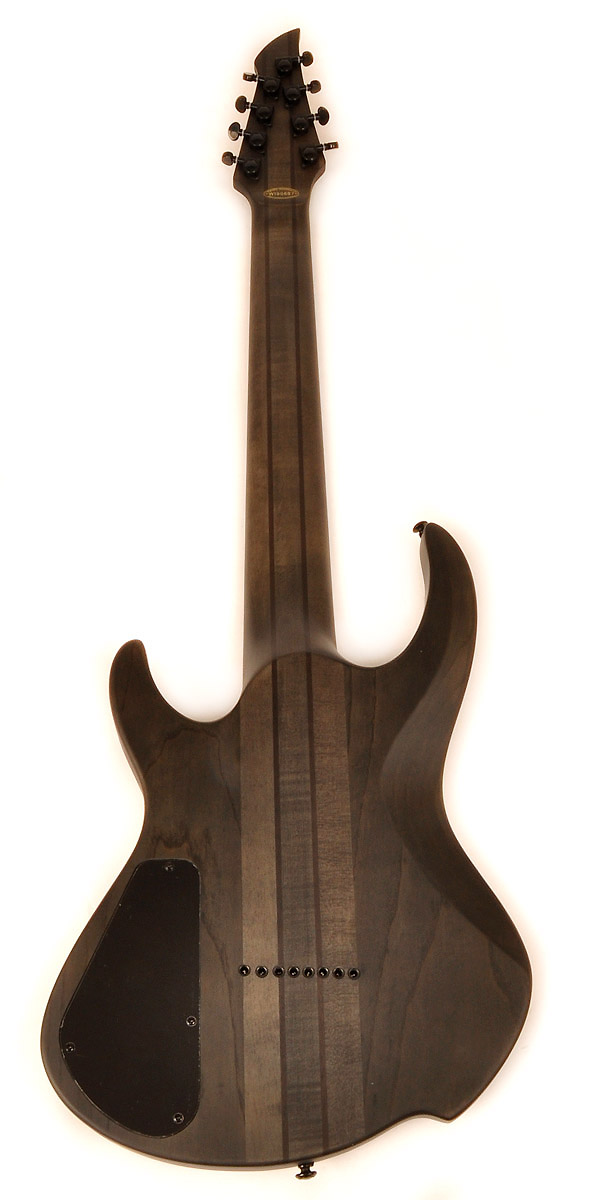

A Simply Amazing Price On This 8 String Intrepid!
Mahogany body
Ebony fretboard
5 piece maple/walnut neck-through body design
No inlays on the neck - position markers on the side of the neck only
24 jumbo frets
Made UK Bare Knuckle Pain Killer pickups with master volume and tone
Cepheus 8 high mass extended range bridge
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Scale length: 28 5/8”
Width of the neck at the nut: 2 1/4"
Neck profile (thickness) at the nut: 7/8"
Neck profile (thickness) at the 12th fret: 15/16"
Radius: 15"
String gauges: .009, .012, .015, .022, .030, .040, .054, .074
Intrepid Wiring Diagram
A variety of tunings are possible, but for the best intonation set low string to F# below regular E. Follow by standard 7 string tuning (B-E).
|
