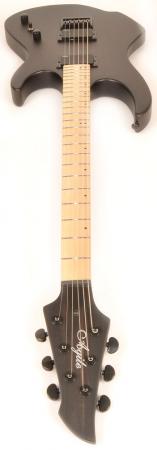

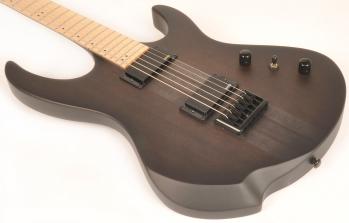

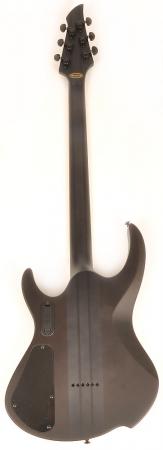

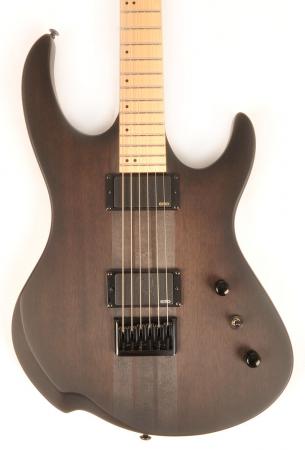

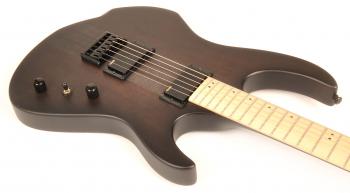

Intrepid Pro 30" Scale Guitar!
Mahogany body with maple fretboard and dot inlays
5 piece maple/walnut neck-through body design
Headstock matches body
Maple neck with 15” radius
24 jumbo frets
EMG 81/85 Pickups
Cepheus extended range high mass bridge
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Overall Length: 43 3/4"
Body Width: Lower Bout: 13 1/2" Upper Bout: 11 3/4"
Scale length: 30”
Pickup dimensions: 2 5/8" x 1 3/8"
Width of the neck at the nut: 1 11/16"
Width of the neck the 22nd fret: 2 1/4"
String spacing at the nut: 9/32" center to center or 1 7/16" overall
String spacing at the bridge is 7/16" or 2 1/8" overall.
Thickness of the neck at the nut: 3/4" at the 12th fret: 1"
Neck profile (thickness): 7/8" at the nut and 15/16" at the 12th fret
String gauge: .050,.038,028,.020,.016,.012 (tuned B to B but lower tuning possible with heavier strings)
Weight: 8 lbs
Intrepid Wiring Diagram
|
