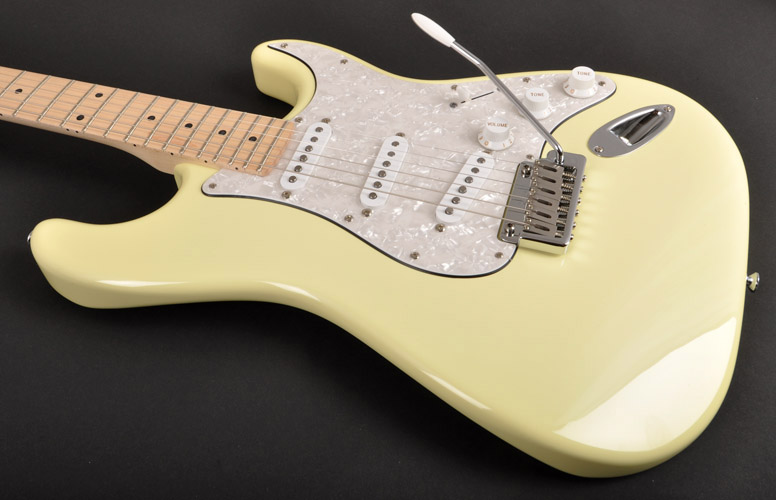

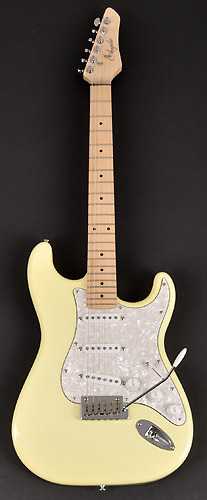

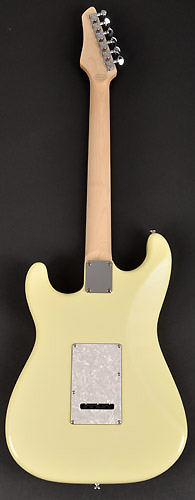

By customer request, A traditionally shaped guitar with high end features!
Solid, 2-piece Alder body
Three staggered pole Alnico V single coil pickups with fiber bobbin and American made single conductor braided 18 gauge wire provide the professional sound you are looking for!
High voltage pots with brass shafts for reduced noise
You can tailor the sound with 1 volume and 2 tone controls plus a 5-way pickup selector switch

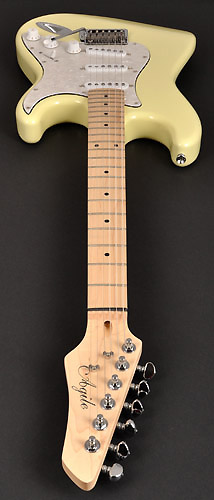

Canadian Maple neck with Maple fretboard, and adjustable truss rod
Wilkinson WVP2 SP two point pivot tremolo for ultra smooth vibrato
Push in vibrato arm, solid stainless steel saddles and stagger drilled block for improved intonation
Grover tuners with 18-1 turn ration for utrla fine tuning
Pearloid 2-ply pickguard gives this guitar a classy look
Width of the neck at the nut: 1 11/16"
Neck Profile - 20mm at the 1st fret and 22.5mm at the 12th fret
Approx. Weight is only 7 lbs
Left handed version with Maple fretboard also available, but not pictured.
Pickup spec: Magnet: Alnico V, Coil 42awg (.063mm)
Neck: Inductance: 3.2 Henrys, DC Resistance: 6.0k ohms Turns 7,890
Middle: Inductance: 3.3 Henrys, DC Resistance: 6.2k ohms Turns 8,150
Bridge: Inductance: 3.6 Henrys, DC Resistance: 6.8k ohms Turns 8,150
|
