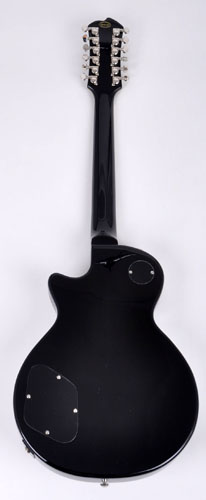

Very Unique - 12 String Fretless Guitar!
Black hardware, including die-cast Grover tuners with 18-1 turning ratio for ultra fine tuning (Model 102-18N)
Triple bound body, and headstock. Single binding on neck.
13.7" (350mm) radius neck for "fast" play
Solid Mahogany arch top body
One piece Mahogany set neck with 13.7" (350mm) radius neck for fast play and adjustable truss rod
Ebony fretboard
Two Type V Alnico humbucker pickups for warm, traditional sound>
Two volume & two tone controls and a 3-way pickup selector switch help you find your sound
Stop-Bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain
Cream colored binding
Width of the neck at the nut: 1 25/32"; end near the bridge: 2 3/16"
Neck Taper is 21.5 mm at the nut and 23.5mm where the 12th fret would be
Overall length, including the strap button: 41"; Scale length: 24.7"
Updated model now fits in standard size case
Width at the widest point: 13"
Body thickness 2" at edge
Actual Weight is only 10 1/2 lbs
Wiring Diagram
Ceramic Pickup spec:
Neck: Inductance: 3.8 Henries, DC Resistance: 8.14k ohms
String Gauge 1-E 2-B 3-G 4-D 5-A 6-E
Gauge 009 011 020 026 036 046
Octave String 009 012 009 012 020 026
Bridge: Inductance 15.2 Henries DC Resistance: 17.4 k ohms
|
