Because 8 Is NOT Enough....

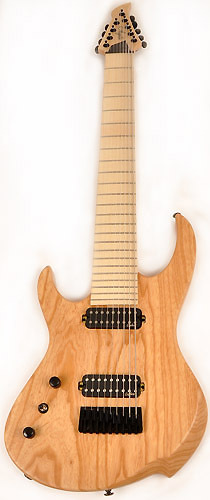

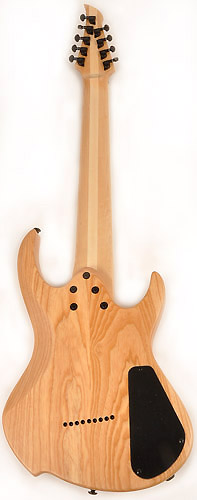

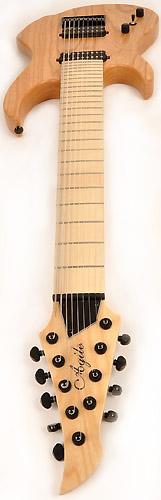

9 string guitar with ash body
1 piece bolt on neck
Cepheus 9 passive pickups with volume, tone and selector switch
Cavity has been routed large enough to accommodate additional electronics
No inlays on the neck - position markers on the side of the neck only
24 jumbo frets
Maple neck with 15 radius
String through body
Die-cast Grover sealed tuners (Model GH305-18) with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Overall length: 44"
Scale length: 30
Width of the neck at the 12th fret: 3 1/8"
Width of the neck at the 24th fret: 3 3/8" String spacing at the bridge: 7/16"
Neck profile (thickness) at the nut: 7/8"
Neck profile (thickness) at the 12th fret: 15/16"
String gauges: .009, .012, .015, .022, .030, .040, .054, .074 .090
Weight: approx. 9 lbs
Guitar is setup to tune as a bass on the lower 2 strings (E, A), and with standard 7 string guitar tuning on the upper 7 strings (B, E, A, D, G, B, E). However a variety of tunings is possible.
Intrepid Wiring Diagram
|
