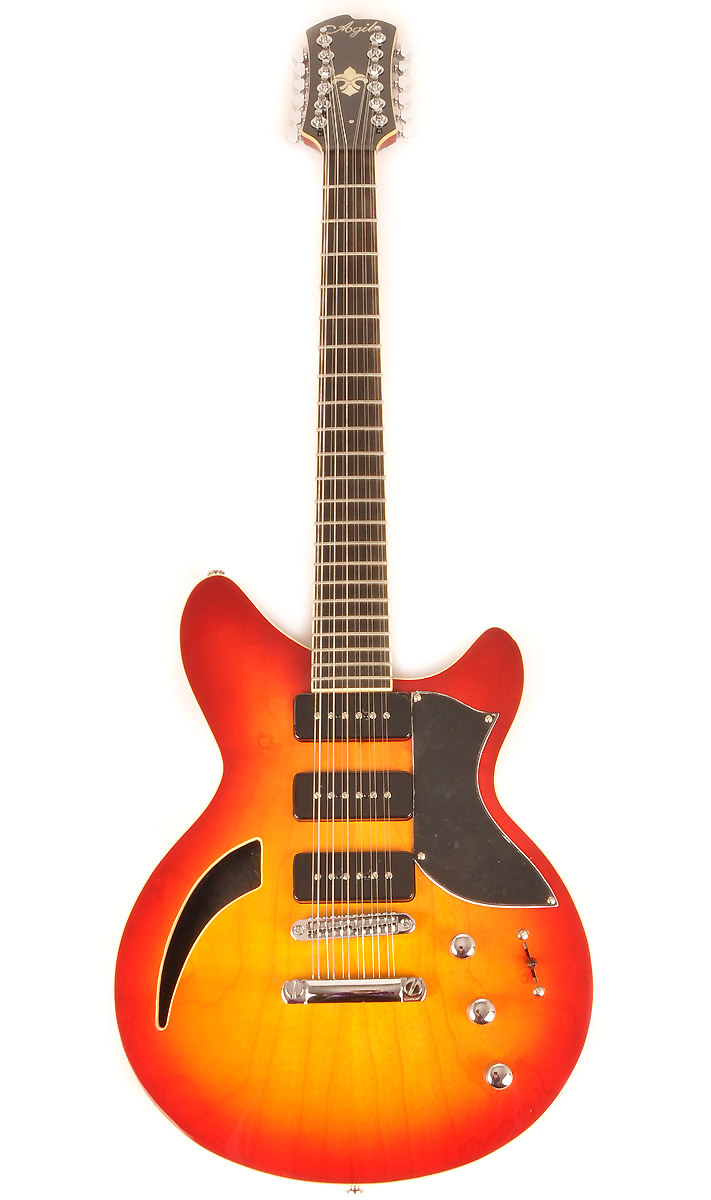

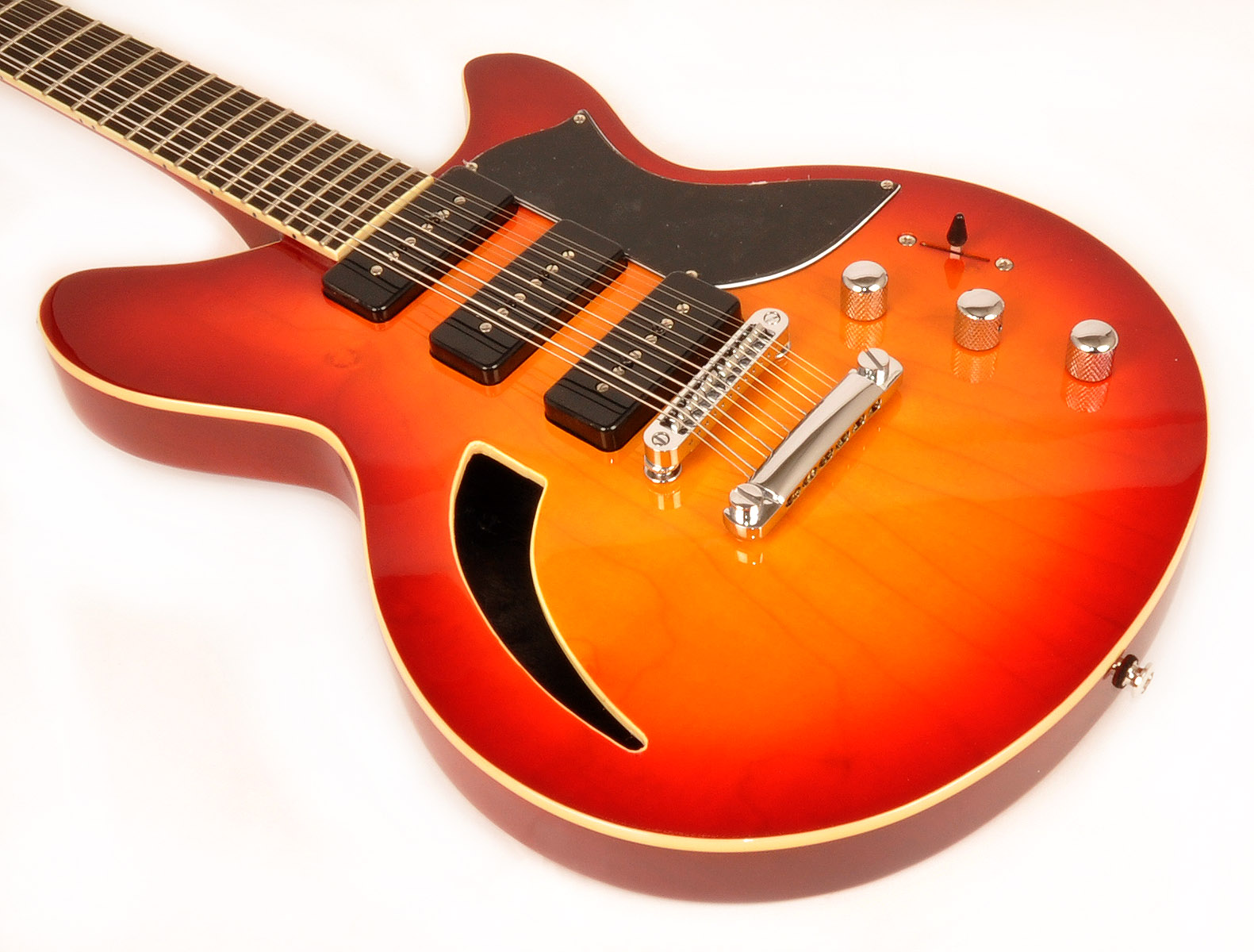

Vintage P90 pickups for that classic "twang"
Semi-hollow mahogany body and single crescent-shaped opening
22 fret maple set neck with ebony fret-board and graphite nut
By popular request, position markers are located on the side of the neck, not on the fretboard
Jumbo 2.7 mm frets and a 13.7" (350 mm) radius neck for fast play
Tune-O-Matic bridge with 12 individual saddles
Die-cast Grover tuners with 18-1 ratio for ultra fine tuning
Vintage cream colored binding on body, neck, and headstock
Chrome pickguard
One volume control and two tone controls help you find your sound
Stop-bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain
Octave style stringing
Measurements
Overall length, including the strap button: 42"
Scale length: 24 3/4"
Width of the neck at the nut: 1 3/4"
Width of the neck at the 22nd fret: 2 3/16"
Thickness of neck at the first fret: 11/16"
Width of body at the widest point: 13 1/4"
Body thickness at edge: 1 3/4"
Weight: only 9 pounds!
HXB Wiring Diagram
|
