This B stock item has some rough finish on the treble side binding of the neck in the 3rd-4th fret
area.

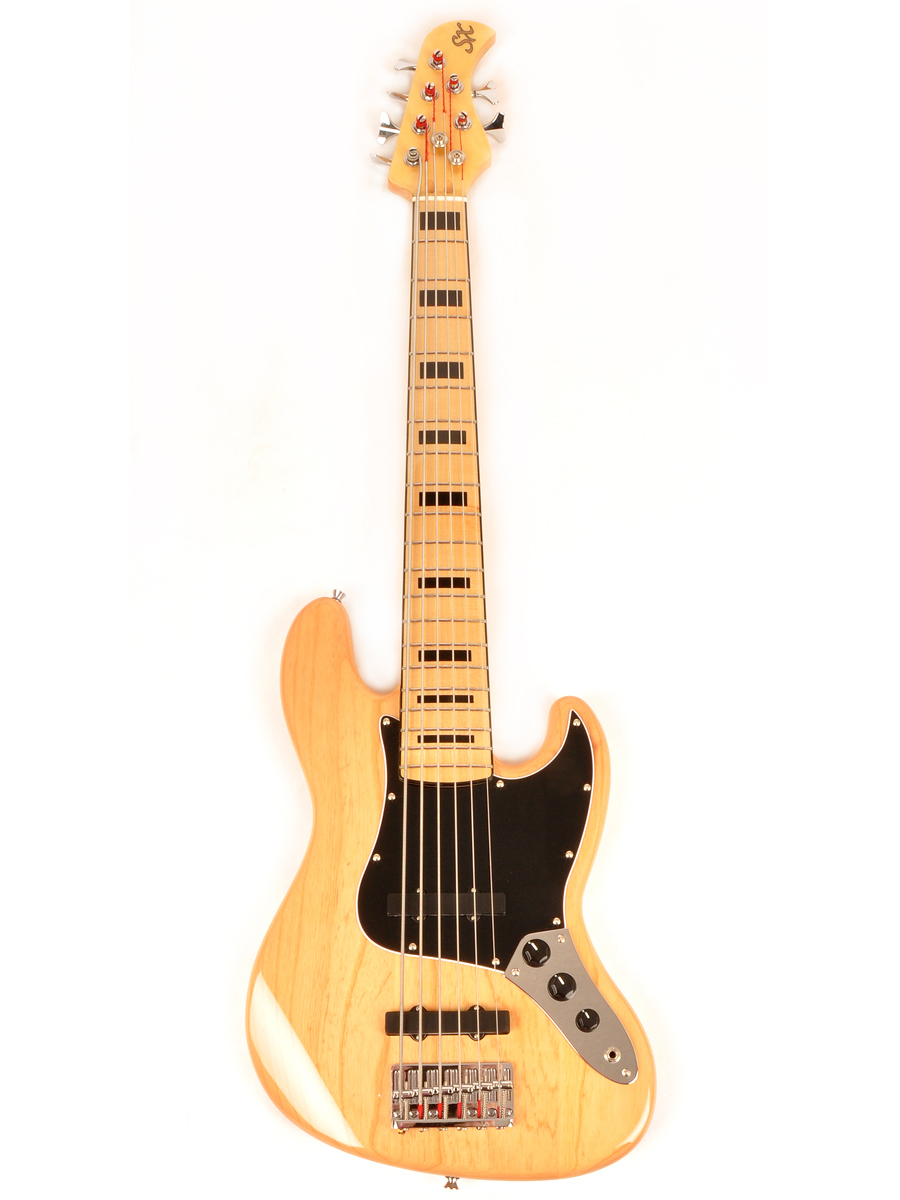

Body of the bass is crafted with beautiful solid American swamp ash, sealed with a poly-urethane finish to let the natural wood show through
Light weight, yet produces a full range of colorful tones
Dual cutaways allow access to the highest frets
Bound bolt-on maple neck with adjustable truss rod
Maple fretboard with 20 jumbo frets and contrasting black block inlays create a stunning look
Passive pickups offer superior output
Two volume controls and one tone control let you tailor your individual sound
Bold chrome vintage saddle and a 2-ply BLACK pickguard create a powerful look
Headstock compliments saddle with chrome hardware
Headstock features 4+2 tuner separation (4 one one side, two on the other)
Measurements
Overall length 47"
Body Length: 18 3/4"
Scale length: 34"
Width at the widest point: 14 1/4"
Body thickness: 1 11/16"
Width of the neck at the nut: 2 1/8"
Width of the neck at the 12th fret: 2 15/16"
Width of the neck at the 20th fret 3 1/4"
Thickness of the neck at the first fret: 13/16" Thickness of the neck at the 12th fret: 3/4" Radius: 14"
Neck pickup dimensions: 3 15/16" x 11/16"
Bridge pickup dimensions: 5 1/16" x 11/16"
String spacing at the nut: 5/16" (1 3/4" overall)
String spacing at the bridge: 11/16" (17mm)
Factory string gauge .030-.125 (heavier gauges may require drilling out bridge holes)
Weight: only 10.5 pounds!
Wiring Diagram
|
