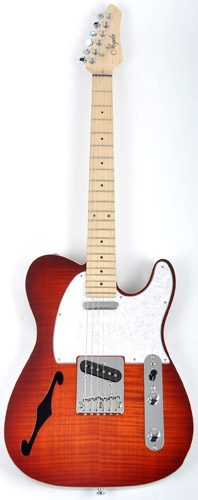

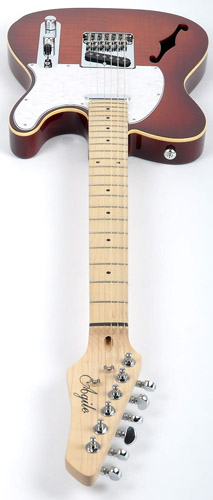

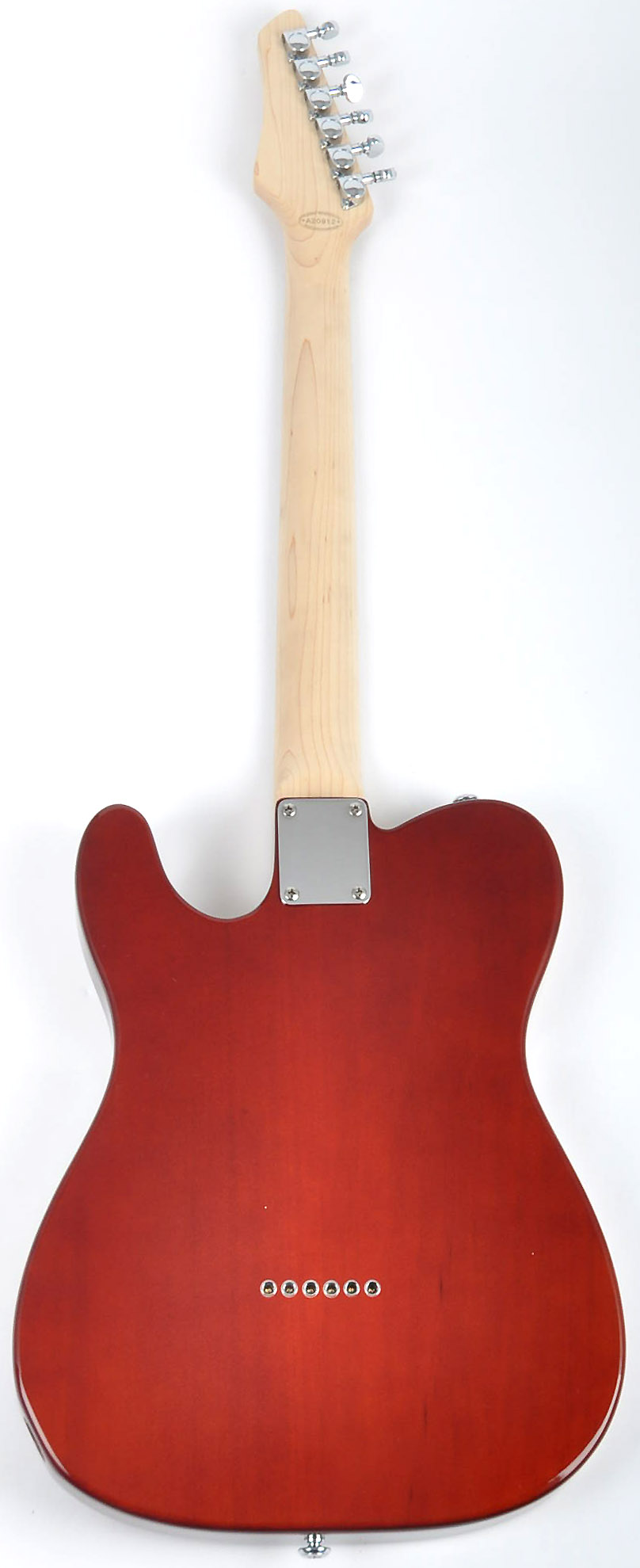

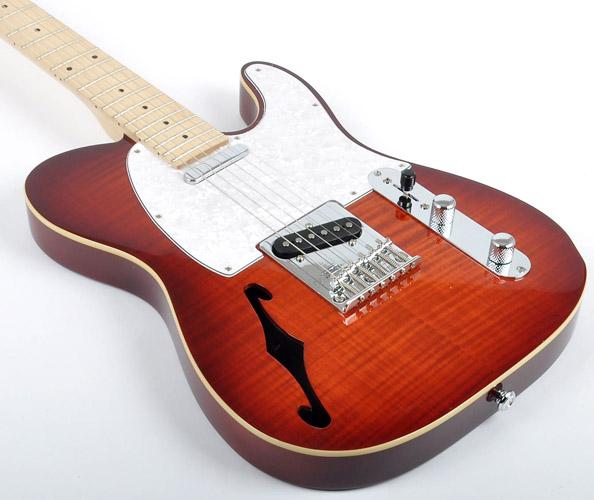

Retro-Styled Semi-Hollow Electric!
A real Flame Maple Top and a single F-hole make this guitar a classic
Solid Alder flat-top body for great tone
Professional Grover tuners offer an 18-1 tuning ratio for ultra fine tuning
Bolt-on Canadian Hard Maple neck and graphite nut
Maple fretboard with dot inlays and 22 jumbo frets
Standard string-thru-body T- style fixed bridge with adjustable saddles
Passive volume/tone controls with classic blade three way selector switch
Two vintage style single coil pickups help create that classic sound
Width of the neck at the nut: 1 5/8"
Overall length 40 "; Scale length: 25.5"
Fingerboard radius: 254mm
Width at the widest point: 13"
Actual Weight is only 6 lbs
Wiring Diagram
Pickup Specs:
Magnet: Ceramic /
Coil: Neck: 44awg(0.05mm)
Bridge: 42awg(0.063mm)/
Turns: Neck: 8,050T CCW
Bridge: 9,950T CCW /
DCm Ohm(k): Neck: 8.23K
Bridge: 7.98K /
Inductance(L): Neck: 3.15H
Bridge: 3.70H /
Bobbin: Plasic
Video Summary
Your final shipping costs will depend on your location and the items you order. To determine your total shipping cost, please click on the "add to shopping cart" button, and enter your address information. You will have the opportunity to cancel your order after you are quoted a shipping price.
$325.00
