This new Left Handed 5 string bass from SX guitars features classic styling at a great, low price!

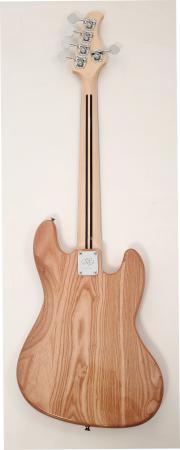

Body of the bass is crafted with beautiful Solid American swamp Ash, sealed with a poly-urethane finish to let the natural wood show through
Designed for the left handed player, with a left handed bridge and nut installed
Dual cutaways allow access to the highest frets
Bound bolt-on maple neck with dual rosewood reinforcements
Maple fretboard with 20 jumbo frets and contrasting black block inlays create a stunning look
Two passive pickups are controlled from two volume controls and one tone control for lots of sound flexibility

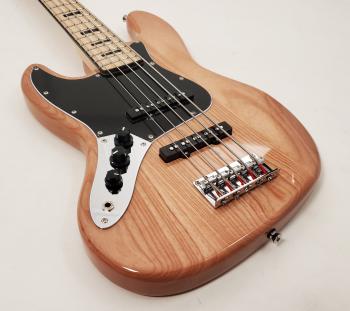

Bold chrome vintage saddle and a 2-ply BLACK pickguard create a powerful look

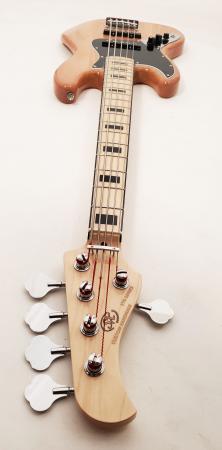

Headstock compliments saddle with chrome hardware
Measurements
Overall length 45"
Scale length: 34"
Width at the widest point: 13"
Body thickness: 1 1/2"
Width of the neck at the nut: 1 7/8"
Width of the neck at the 12th fret: 2 1/2"
Thickness of the neck at the first fret: 7/8" Thickness of the neck at the 12th fret: 15/16" Radius: 14"
Neck pickup dimensions: 3 5/8" x 3/4"
Bridge pickup dimensions: 3 11/16" x 3/4"
String spacing at the nut: 3/8"
String spacing at the 20th fret: 5/8"
Weight: only 10 pounds!
Wiring Diagram
|
